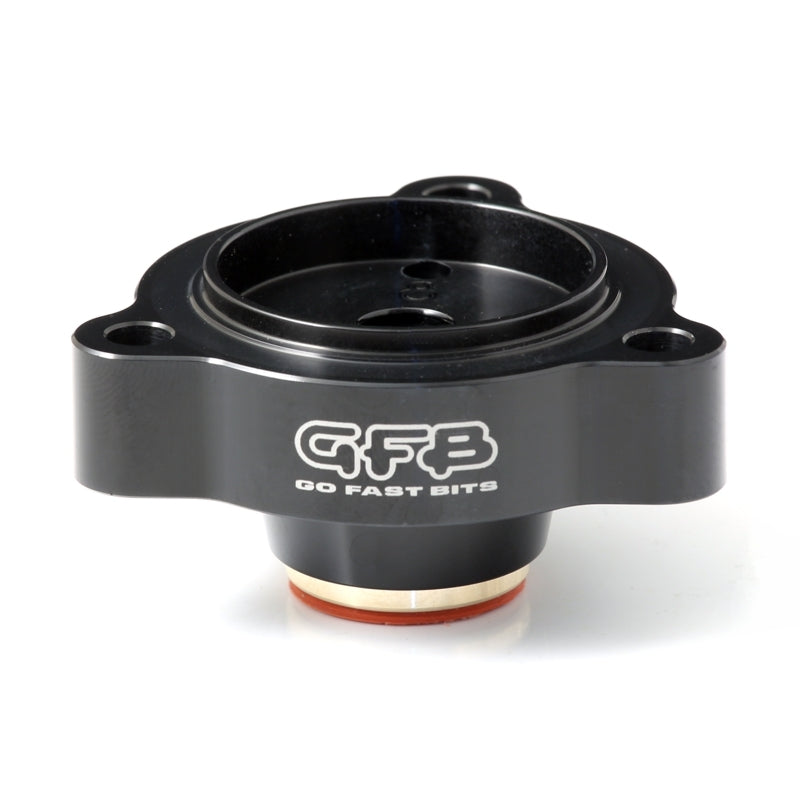

GFB Diverter Valve DV+ 2022+ Subaru WRX

The FA24 engine in the 2022+ WRX now uses an electronically controlled factory diverter in place of the pneumatic bypass valve found on all previous turbo Subaru engines. This is controlled by the ECU, and whilst it sounds like an advancement in technology, in some ways it is a step backwards. It may react to throttle closures faster than a pneumatic valve, but longevity and boost sealing is an issue with these types of valve because their valve mechanism is made entirely of moulded plastic. Importantly though, the factory electronic valve cannot open and close progressively - it's either open or shut, resulting in less than optimum throttle response and drivability. The DV+ design solves all the shortcomings of the factory electronic diverter valve, replacing the plastic valve assembly with precision CNC machined metal components, and also changes the operation method so it can open and close progressively wilst retaining electronic control. This ensures ultimate boost holding and durability, and the best possible throttle response.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2022-2023	Subaru	WRX	Base
2022-2023	Subaru	WRX	GT
2022-2023	Subaru	WRX	Limited
2022-2023	Subaru	WRX	Premium
